Name: 1.0mm Fleece Automotive Wire Harness Tape Noise Damping Abrasion Resistance 25m Roll
Brand: Guangzhou Kablee Auto Parts Co., Ltd.
SKU: KFL-055
Price: 0.85 USD
Availability: InStock

Home > products > Automotive Wire Harness Tape >

1.0mm Fleece Automotive Wire Harness Tape Noise Damping Abrasion Resistance 25m Roll

1.0mm fleece wire harness tape

automotive noise damping tape

abrasion resistant harness tape

Place of Origin:

Guangzhou, Guangdong, China

Brand Name:

Kablee

Certification:

IATF16949:2016, RoHS, REACH, ELV

Model Number:

KFL-055

Request A Quote

1.0mm Fleece Automotive Wire Harness Tape Noise Damping Abrasion Resistance 25m Roll

Product Details

Part Name:

Fleece Wiring Harness Tape

Part Code:

KFL-T18

Backing Material:

Felt Tape

Adhesive:

Acrylates Copolymer, Solvent Free

Total Thickness:

1.0mm +/-0.05

Width Options:

19 / 25 / 32 / 38mm +/-0.2

Standard Length:

25m +/-0.3 Per Roll

Core Diameter:

38mm +/-1

Peel-off Strength:

>=1.5 N/cm

Tensile Strength:

>=20 N/cm

Elongation:

>=10%

Temperature Resistance:

-40 To 105 C

Abrasion Resistance:

Scrape Class D 1000-4999

Noise Damping:

Up To 8 DB Cabin Rattle Reduction

Flame Retardation:

Class B Self-extinguishing

Colour:

Black, Grey, Orange

Payment & Shipping Terms

Minimum Order Quantity

500 Rolls

Price

USD 0.85-1.60 / Roll

Packaging Details

Kablee branded shrink wrap per roll, 24 rolls per carton, export grade corrugated carton with pallet

Delivery Time

7 working days for stock, 20-25 days for production

Payment Terms

T/T,L/C,PayPal,Western Union

Supply Ability

200000 Rolls per Month

0.6mm Grey Fleece Automotive Wire Harness Tape High Adhesion Noise Damping Abrasion Resistance 19mm

Get Best Price

0.45mm Wide Fleece Automotive Wire Harness Tape 38mm Noise Damping Abrasion Resistance 25m Roll

Get Best Price

0.3mm Heavy Fleece Automotive Wire Harness Tape High Temperature Noise Damping Abrasion Resistant

Get Best Price

1.0mm Fleece Automotive Wire Harness Tape Noise Damping Abrasion Resistance 25m Roll

Get Best Price

00-86-15322005945

sales03@kablee.com.cn

Contact Now

Product Description

Felt Automotive Wire Harness Tape for Quiet Cabin Wiring

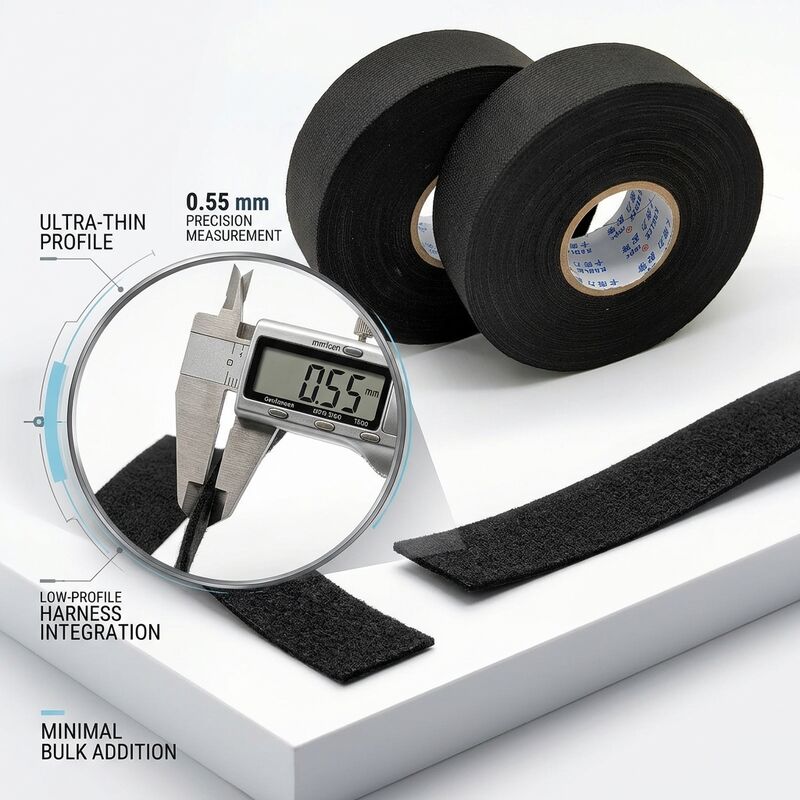

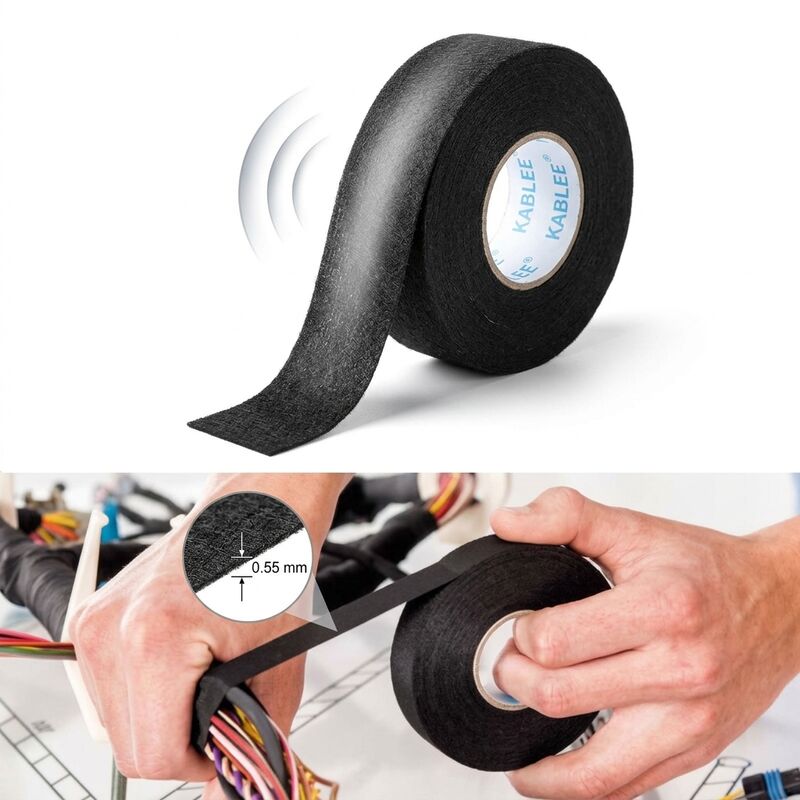

This 0.55mm fleece automotive wire harness tape is built for interior wiring runs where cabin noise and loom abrasion are the real problems. The non-woven fleece backing traps vibration energy before it reaches trim panels, while the high-cohesion acrylic adhesive keeps the wrap tight through years of door slams and road vibration.

Why harness makers choose this fleece tape

Noise damping: fleece backing reduces rattle and squeak from dash, door and pillar harnesses.
Abrasion resistance: protected fleece surface resists rubbing against brackets and trim edges, tested to Scrape Class D.
Hand tearable: operators tear the roll by hand, no scissors on the line, faster takt time.
Low VOC and low odour: passes RoHS, REACH and ELV requirements for interior parts.
Clean removal: no sticky residue left on wire insulation during rework.

Technical specification

Item	Value
Part name	Fleece Wiring Harness Tape
Part code	KFL-T18
Backing material	Non-woven PET fleece
Adhesive	Acrylates copolymer, solvent free
Total thickness	1.0mm ±0.05
Width options	19 / 25 / 32 / 38mm ±0.2
Standard length	25m ±0.3 / roll
Core diameter	38mm ±1
180° peel-off strength	≥1.5 N/cm
Tensile strength	≥20 N/cm
Elongation	≥10%
Temperature resistance	-40°C to 105°C
Abrasion resistance (Scrape)	Class D 1000-4999
Noise damping	Reduces harness rattle by up to 8 dB in cabin tests
Flame retardation	Class B self-extinguishing
Colour	Black, grey, orange available

Applications

Instrument panel harnesses, door module wiring, seat harness, pillar and headliner looms, EV battery pack low-voltage harness where squeak and rub protection is required.

Customisation and supply

We die-cut, slit and print rolls to your drawing. Width, length, colour and adhesive coat weight can be customised for each harness program. Samples are free for qualified harness makers and OEM Tier 1 suppliers.

About Kablee

Guangzhou Kablee Auto Parts Co., Ltd has supplied wire harness tapes to OEM and Tier 1 harness programmes including Nissan, Mazda, Ford, GM, Geely, SAIC and Tesla supply chains since 2006. Our plant runs IATF16949:2016 quality management with full batch traceability, RoHS, REACH and ELV documentation available on request.
