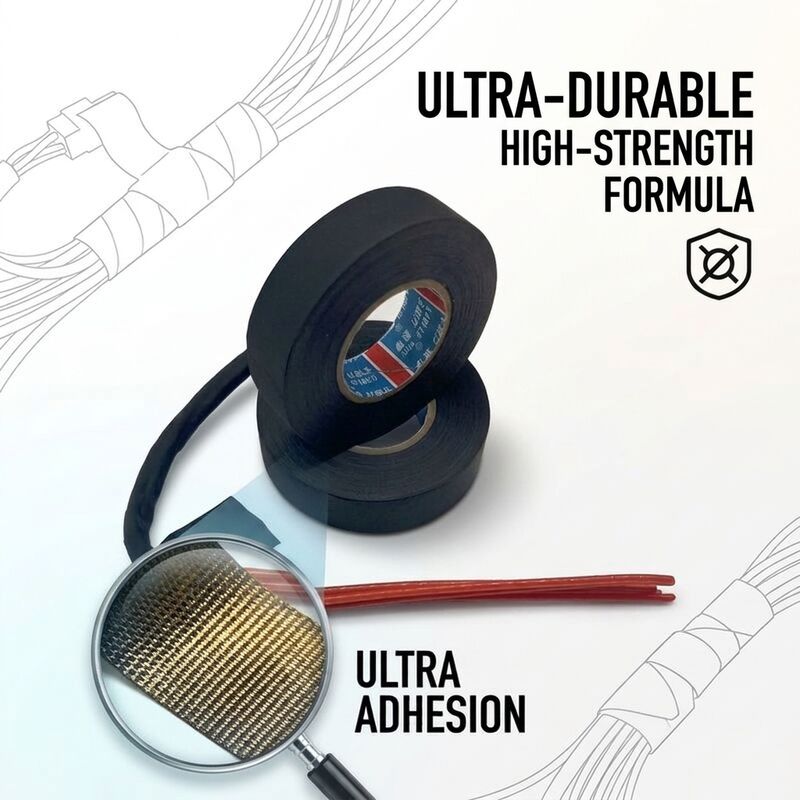

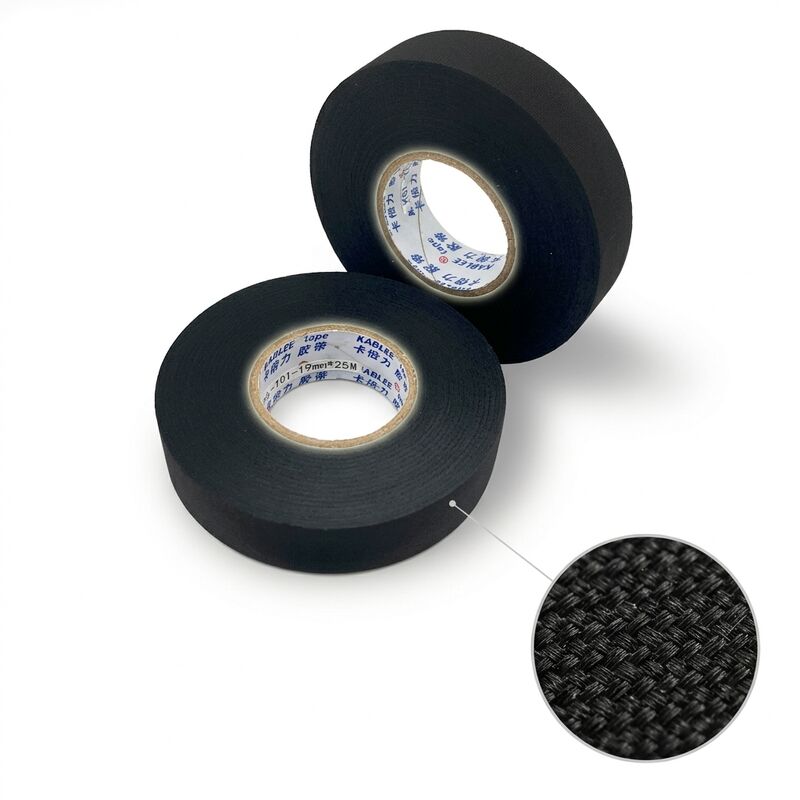

Kablee Cloth Tape T01 0.2mm Black 50m Long Roll Automotive Wire Harness Wrapping

cloth tape for wire harness

0.2mm black cloth tape

50m automotive cloth tape

Place of Origin:

Guangzhou, Guangdong, China

Brand Name:

Kablee

Certification:

IATF16949:2016, RoHS, REACH, ELV

Request A Quote

Kablee Cloth Tape T01 0.2mm Black 50m Long Roll Automotive Wire Harness Wrapping

Product Details

Part Code:

Kablee T01-50

Backing Material:

Woven PET Cloth

Adhesive:

Acrylates Copolymer, Solvent Free

Total Thickness:

0.20mm +/-0.02

Width Options:

19 / 25 / 32 / 38mm +/-0.2

Roll Length:

50m +/-0.5

Core Diameter:

38mm +/-1

Peel-off Strength:

>=1.5 N/cm

Tensile Strength:

>=20 N/cm

Elongation:

>=10%

Temperature Resistance:

-40 To 105 C, Peak 150 C / 240h

Abrasion Resistance:

Scrape Class D 1000-4999

Flame Retardation:

Class B Self-extinguishing

Colour:

Black

Payment & Shipping Terms

Minimum Order Quantity

500 Rolls

Price

USD 1.20-2.10 / Roll

Packaging Details

Kablee branded shrink wrap per roll, 12 rolls per carton, export grade corrugated carton with pallet

Delivery Time

7 working days for stock, 20-25 days for production

Payment Terms

T/T, L/C, PayPal, Western Union

Supply Ability

150000 Rolls per Month

Kablee Cloth Tape T01 0.2mm Black 50m Long Roll Automotive Wire Harness Wrapping

Get Best Price

Engine Bay Cloth Wire Harness Tape 38mm x 25m High Temperature Resistant Automotive Loom Wrap

Get Best Price

Fleece Automotive Cloth Wire Harness Tape 19mm x 20m Noise Reduction Anti Abrasion Wiring Wrap

Get Best Price

Black Cloth Wire Harness Tape 25mm x 25m High Temperature Resistant Automotive Wiring Loom Wrap

Get Best Price

00-86-15322005945

sales03@kablee.com.cn

Contact Now

Product Description

Kablee Cloth Tape T01 in 50m Long Roll for High Volume Harness Lines

Every roll change on a wrapping station costs takt time. Kablee cloth tape T01 is now supplied in a 50m long roll, double the standard 25m length, so operators on high volume harness lines spend less time swapping cores and more time wrapping. The woven PET cloth backing and acrylates copolymer adhesive are the same specification already running in our OEM programmes.

Why the 50m roll pays back

Half the roll changes: 50m per roll reduces downtime on manual and semi automatic stations.
Kablee cloth tape quality: woven PET cloth, solvent free acrylic, consistent unwind tension.
Abrasion resistance: Class D scrape performance protects the loom at clips and brackets.
Hand tearable: clean tear by hand, no blade on the line.
Low VOC: passes RoHS, REACH and ELV, odour controlled for interior harnesses.

Technical specification

Item	Value
Part code	Kablee T01-50
Backing material	Woven PET cloth
Adhesive	Acrylates copolymer, solvent free
Total thickness	0.20mm ±0.02
Width options	19 / 25 / 32 / 38mm ±0.2
Roll length	50m ±0.5
Core diameter	38mm ±1
180° peel-off strength	≥1.5 N/cm
Tensile strength	≥20 N/cm
Elongation	≥10%
Temperature resistance	-40°C to 105°C, peak 150°C / 240h
Abrasion resistance (Scrape)	Class D 1000-4999
Flame retardation	Class B self-extinguishing
Colour	Black

Applications

Main harness wrapping on volume lines, body and floor loom bundles, cable assembly cells where roll change frequency limits output.

Supply

Kablee manufactures cloth and fleece harness tapes in Guangzhou with in-house adhesive coating. Batch records, abrasion reports and material declarations ship with every lot. Free samples for qualified harness makers.
