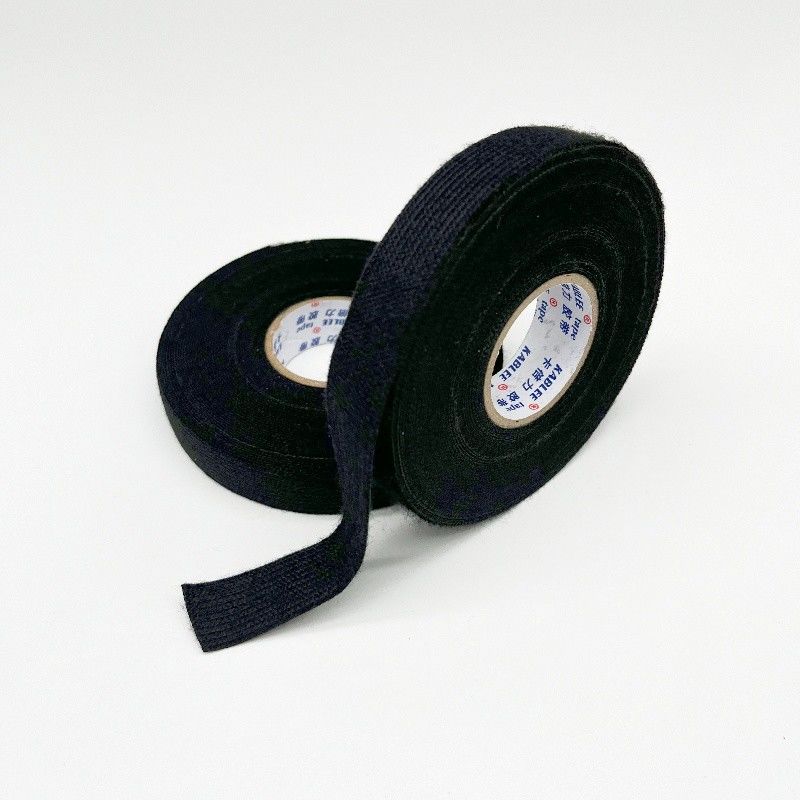

Professional Full Black T58 Non-woven Fabric Material Fleece Wiring Tape For Wire Harness Cable

Professional Full Black T58 Non-woven Fabric Material Fleece Wiring Tape For Wire Harness Cable

Professional Fleece Wiring Tape

Non-woven Fabric Fleece Wiring Tape

Full Black Fleece Wiring Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T58-19

Contact Us

Request A Quote
Product Details
Adhesion To Steel:
2.5N/cm
Product Name:
Fleece Wiring Tape
Temperature Range:
-40℃ (4h)~105℃ (3000h)
Length:
10M
Resistance To Chemicals:
Class B
Flame Retardation:
Class B Self-extinguishing
Tensile Strength:
50N/cm
Material:
Fleece
Elongation At Break:
15%
Usage:
Wiring Cable Protection
Resistance To Abrasion:
Good
Core Diameter:
38mm±1
Moisture Resistant:
Yes
Part Code:
T58
Thickness:
0.7mm±0.02
Standard Length:
25M±0.3/roll
Fammability:
Good
Part Name:
Non-woven Fleece Tape
Color:
Black
Elongation:
≥10%
Application:
Automotive, Electrical, Industrial
Adhesive Type:
Acrylic
Key Words:
Automotive Harness Tape
Chemical Resistant:
Yes
Water Resistance:
Yes
Width:
19mm
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
500 cartons per day
Product Description

Professional Full Black T58 Non-woven Fabric Material Fleece Wiring Tape for Wire Harness Cable

Product Description:

Wire harness fleece tapes, also known as wire harness wrapping tapes or fleece tapes, are specialized adhesive tapes used in the automotive and electrical industries for securing and protecting wire harnesses. These tapes are designed to provide insulation, abrasion resistance, and mechanical protection to the wires and cables in a wire harness.



Here are some key features and benefits of wire harness fleece tapes:



1. Material: Wire harness fleece tapes are typically made from a combination of woven or non-woven polyester fleece and adhesive. The fleece material provides a soft, cushioned layer that protects the wires from damage, while the adhesive ensures secure bonding.


2. Insulation: Fleece tapes offer excellent electrical insulation properties, which help prevent short circuits and electrical interference. They can withstand high temperatures and provide a barrier against moisture and chemicals.



3. Abrasion resistance: The thick, fleece-like texture of these tapes provides a protective layer that resists abrasion and mechanical damage. They can withstand rubbing, vibration, and other mechanical stresses encountered in automotive and industrial applications.


4. Easy application: Wire harness fleece tapes are typically easy to tear by hand, making them convenient to work with during installation. They can be wrapped around wire bundles or individual wires and conform to the shape of the harness, ensuring a secure and snug fit.


5. Noise reduction: The soft, cushioned nature of fleece tapes helps absorb and dampen vibrations and noise caused by wire movement, reducing rattling and improving overall system performance.


6. Variety of options: Wire harness fleece tapes come in different widths, thicknesses, and adhesive strengths to suit various applications. They are available in multiple colors, allowing for easy identification and organization of wire bundles.



When selecting a wire harness fleece tape, it's essential to consider factors such as the required insulation properties, temperature resistance, and the specific environmental conditions in which the wire harness will be used.



Overall, wire harness fleece tapes play a vital role in protecting and organizing wire harnesses, ensuring reliable and safe electrical connections in automotive, aerospace, industrial, and other applications.



Technical Parameters:

Application Insulation Of Wiring Harness
Material Non-woven Fabric
Width 9/19/25/32/38/50mm ±0.2
Flame retardation Class B Self-extinguishing
Length 10m
Thickness 0.31mm
Tensile Strength 20N/cm
Resistance to Abrasion Good
Resistance to Chemicals Good
Elongation ≥10%


Applications:

Fleece wiring tapes, also known as fleece tapes or fabric tapes, are adhesive tapes with a fleece or fabric backing used in various applications related to wiring and electrical installations. These tapes are designed to provide insulation, protection, and bundling capabilities for electrical wires and cables. Here are some common applications of fleece wiring tapes:




1. Electrical Insulation: Fleece tapes provide an additional layer of insulation for electrical wires and components. They can be wrapped around individual wires or used to cover exposed sections of cables, providing protection against physical damage, moisture, and electrical short circuits.



2. Wire and Cable Repair: When wires or cables are damaged, fleece wiring tapes can be used to repair them temporarily or as a temporary measure until a permanent fix can be implemented.


3. Automotive Applications: Fleece tapes find extensive use in the automotive industry for various wiring and cable management tasks. They are employed in the assembly of wire harnesses, protecting wiring systems against vibrations, abrasion, and temperature fluctuations.
