Place of Origin:
Guangzhou China
Brand Name:
Kablee
Certification:
RoHS/REACH/ELV/IATF16949:2016
Model Number:
T58-19
Contact Us
Video
Video
Video

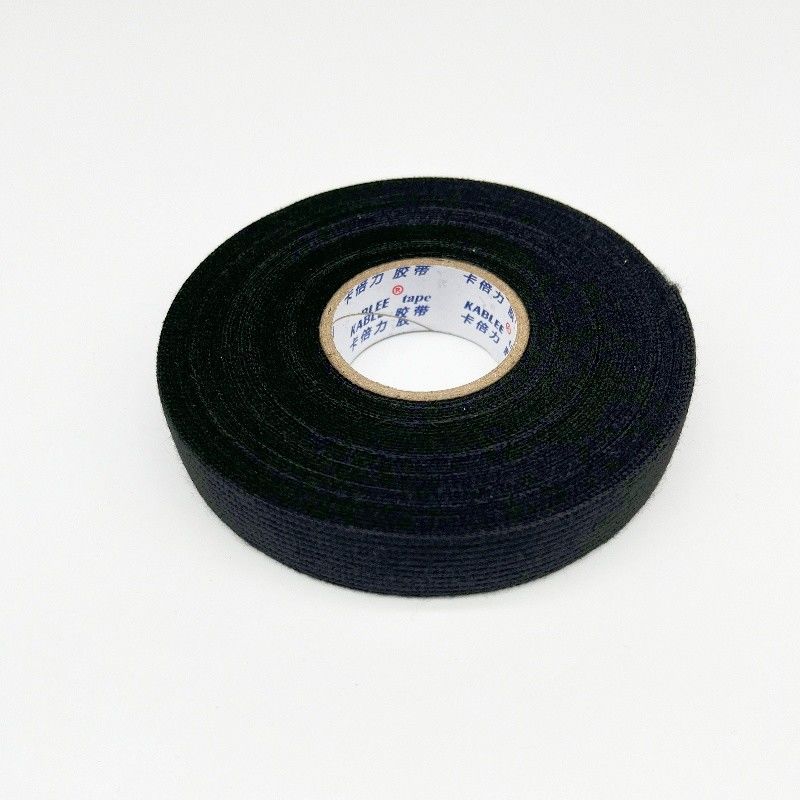

Fleece wiring tapes, also known as fleece tapes or fabric tapes, are adhesive tapes that consist of a backing made of fleece or fabric material and an adhesive layer on one side. The fleece backing provides flexibility, conformability, and durability, while the adhesive layer allows the tape to securely adhere to various surfaces.
The fleece backing of these tapes is typically made from polyester or cotton fibers. It has a soft, woven texture that provides excellent flexibility, allowing the tape to conform to irregular shapes, bends, and contours. This flexibility makes fleece wiring tapes ideal for wrapping around wires and cables, ensuring a snug fit and preventing movement or chafing.
The adhesive layer on one side of the tape is formulated to provide strong adhesion to a variety of surfaces, such as plastic, metal, rubber, and fabric. The adhesive is typically a synthetic rubber-based or acrylic-based adhesive, chosen for its bonding strength and resistance to temperature, moisture, and other environmental factors.
| Application | Insulation Of Wiring Harness |
| Material | Non-woven Fabric |
| Width | 9/19/25/32/38/50mm ±0.2 |
| Flame retardation | Class B Self-extinguishing |
| Length | 10m |
| Thickness | 0.31mm |
| Tensile Strength | 20N/cm |
| Resistance to Abrasion | Good |
| Resistance to Chemicals | Good |
| Elongation | ≥10% |
Fleece wiring tapes, also known as fleece tapes or fabric tapes, are adhesive tapes with a fleece or fabric backing used in various applications related to wiring and electrical installations. These tapes are designed to provide insulation, protection, and bundling capabilities for electrical wires and cables. Here are some common applications of fleece wiring tapes:
1. Wire Harnessing: Fleece tapes are widely used in wire harnessing applications, where they are employed to bundle and secure a group of wires or cables together. The fleece backing offers excellent flexibility and conformity, allowing the tape to conform to irregular shapes and contours, ensuring a snug fit and preventing wire movement or chafing.
2. Electrical Insulation: Fleece tapes provide an additional layer of insulation for electrical wires and components. They can be wrapped around individual wires or used to cover exposed sections of cables, providing protection against physical damage, moisture, and electrical short circuits. The fleece backing acts as a barrier, preventing the wires from coming into contact with each other or with other conductive surfaces.
3. Wire and Cable Repair: When wires or cables are damaged, fleece wiring tapes can be used to repair them temporarily or as a temporary measure until a permanent fix can be implemented. The tape can be wrapped around the damaged section, providing both insulation and mechanical strength to hold the wires together.
4. Automotive Applications: Fleece tapes find extensive use in the automotive industry for various wiring and cable management tasks. They are employed in the assembly of wire harnesses, protecting wiring systems against vibrations, abrasion, and temperature fluctuations. Fleece tapes are also used for wrapping cables in engine compartments, where they provide thermal insulation and safeguard against chemical exposure.
