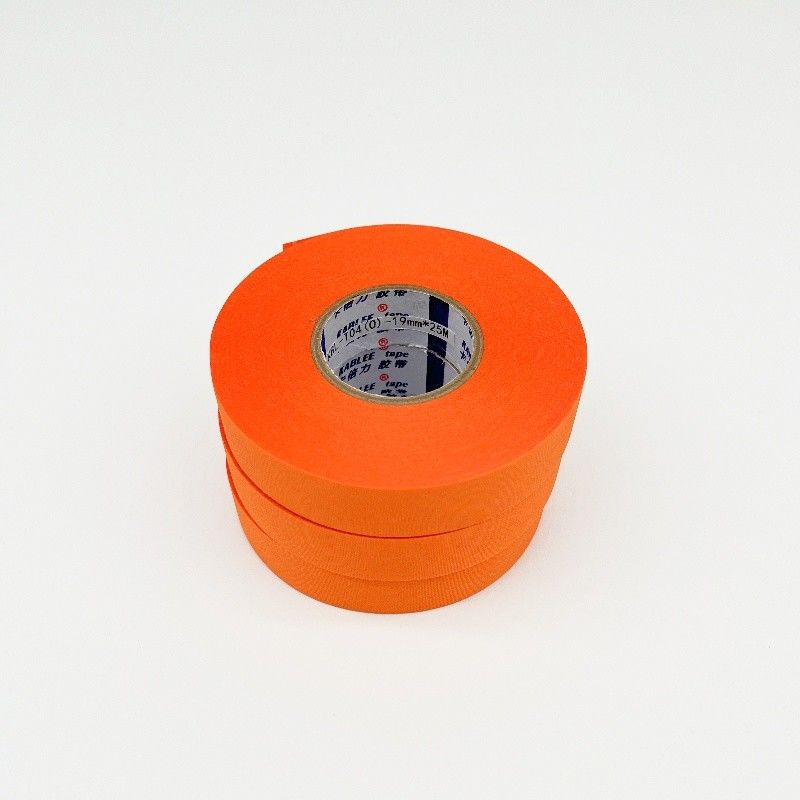

Orange Color Cloth Wire Harness Tape T04 Acrylates Copolymer Adhesive

Orange Color Cloth Wire Harness Tape T04 Acrylates Copolymer Adhesive

T04 Cloth Wire Harness Tape

Orange Color Cloth Wire Harness Tape

Orange Color Wire Harness Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T04(O)

Contact Us

Request A Quote
Product Details
Abrasion Resistance (Scrape):
Class D 1000~4999
Flame Retardation:
Class B Self-extinguishing
Elongation:
≥10%
Temperature Range:
-40℃ (4h)~150℃ (3000h) 175℃ (240h)
Color:
Black
Resistance To Abrasion:
≥750mm
Total Thickness:
0.25mm±0.02
Product Name:
Cloth Wire Harness Tapes
Tensile Strength:
50N/cm
Adhesion To Steel:
2.5N/CM
Application:
Wire Harness Wrapping
Material:
PET
Length:
25m
Part Code:
T04
Size:
19mm*25m
Flammability:
Class B Self-extinguishing
Adhesive:
Pressure Sensitive Adhesion
Temperature Resistance:
Up To 150°C
Core Diameter:
38mm±1
Width:
19mm
Original From:
Guangzhou China
Flame Retardant:
Yes
Abrasion Resistance:
Yes
Stretch Performance:
≥10%
Thickness:
0.25mm
Uv Resistance:
Yes
Standard Length:
25M±0.3/roll
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description



Orange Color Cloth Wire Harness Tape T04 Acrylates Copolymer Adhesive

Product Description:

Cloth wire harness tape, also known as fabric tape or friction tape, is a type of adhesive tape specifically designed for wire harnesses and electrical applications. It is made from a woven cotton fabric material that provides flexibility, durability, and good insulation properties. Here are some key features and uses of cloth wire harness tape:



Features:

1. Adhesive: Cloth wire harness tapes are coated with a pressure-sensitive adhesive on one side, which provides strong adhesion to the wire harnesses and other surfaces. The adhesive is designed to bond well with the fabric and provide long-lasting protection.

2. Friction and abrasion resistance: The cloth material used in these tapes offers good friction and abrasion resistance, which helps protect the wire harnesses from damage due to vibrations, rubbing against other components, or contact with sharp edges or surfaces.

3. Noise dampening: Cloth tapes can help reduce noise and vibrations caused by wire harnesses rubbing against each other or other vehicle parts, enhancing the overall comfort and reducing the potential for rattling sounds.

4. Heat resistance: Automotive cloth wire harness tapes are designed to withstand high temperatures typically encountered in engine compartments or other areas of the vehicle. This heat resistance ensures that the tape remains effective and secure even in demanding environments.

5. Easy application and removal: These tapes are often designed for easy application, allowing for efficient and quick installation during the wire harness assembly process. They can also be removed without leaving significant residue or damaging the wires or surfaces.

6. Conformability: Cloth wire harness tapes are generally flexible and conformable, making it easier to wrap them around irregular shapes and contours of wire bundles. This feature ensures proper coverage and protection for the wires.



Technical Parameters:

Product Attributes Details
Total Thickness 0.25mm±0.02
Flame retardation Class B Self-extinguishing
Tensile Strength ≥20N/cm
Width 9/19/25/32/38/50mm ±0.2
Adhesive Acrylates Copolymer
Elongation ≥10%
Abrasion resistance (Scrape) Class D 1000~4999
Material Woven PET + Acrylates Copolymer
Resistance to Abrasion ≥750mm
Adhesion to Steel 2.5N/CM


Applications:

1. Wire Harnesses: Cloth tape is commonly used to wrap and secure wire harnesses in automotive, marine, and aircraft applications. It provides a secure and neat bundling solution while offering protection against abrasion and electrical interference.

2. Electrical Repairs: It can be used for repairing damaged wire insulation or covering exposed wires. The tape helps insulate and protect the repaired area, preventing electrical hazards.

3. General Purpose Applications: Cloth wire harness tape is also used in various non-electrical applications. Its flexibility and adhesive properties make it suitable for bundling and securing objects, temporary repairs, or as a general-purpose utility tape.



Packing and Shipping:

Cloth Wire Harness Tape Packaging and Shipping:

The Cloth Wire Harness Tape should be packed in a sealed plastic container to prevent dust and debris from entering. It should then be placed in an appropriately-sized cardboard box for shipping. The box should be labeled with the product description and destination address. The box should also include a packing slip with the customer's name and address, the product weight, and the shipping cost.

The box should be sealed with packing tape and placed in a larger box with foam or bubble wrap for additional protection. The box should be labeled with "Fragile" and "Handle With Care" stickers. The box should then be sent to the customer via a reliable shipping service.
