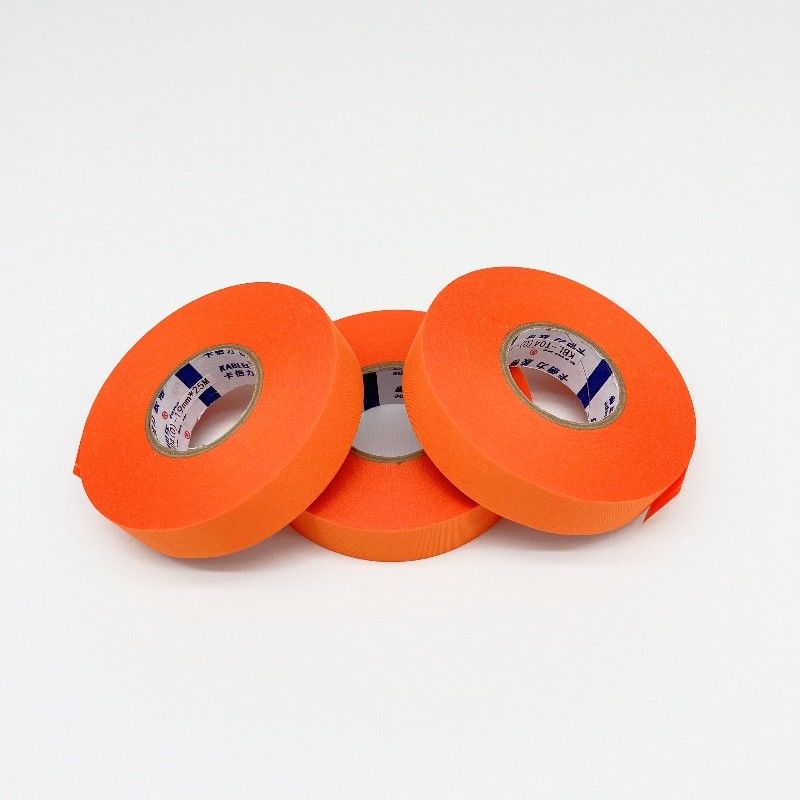

High-Performance Cloth Wire Harness Tape For Automotive Applications

High-Performance Cloth Wire Harness Tape For Automotive Applications

Automotive Cloth Wire Harness Tape

High Performance Cloth Wire Harness Tape

Place of Origin:

Guangzhou China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Flame Retardation:
Class B Self-extinguishing
19mm 25mm
Abrasion Resistance (Scrape):
Class D 1000~4999
Acrylates Copolymer
Resistance To Abrasion:
Total Thickness:
Class B Self-extinguishing
Temperature Resistance:
Up To 150°C
Temperature Range:
-40℃ (4h)~150℃ (3000h) 175℃ (240h)
Automotive Cloth Wire Harness Tape
Tensile Strength:
Abrasion Resistance:
Part Name:
Automotive Cloth Wire Harness Tape
Original From:
Guangzhou China
Part Code:
Adhesion To Steel:
Core Diameter:
Standard Length:
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description

High-Performance Cloth Wire Harness Tape for Automotive Applications


Product Description:

Automotive cloth wire harness tapes are specialized tapes used in the automotive industry to secure and protect wire harnesses. Wire harnesses are bundles of electrical wires and cables that are organized and routed throughout a vehicle to provide electrical connections to various components.


Cloth wire harness tapes are preferred for automotive applications due to their specific characteristics and advantages over other types of tapes. Here are some key features of automotive cloth wire harness tapes:



  • Product Name: Cloth Wire Harness Tape
  • Resistance to Abrasion: ≥750mm
  • Tensile Strength: ≥20N/cm
  • Material: Woven PET + Acrylates Copolymer
  • Adhesive: Acrylates Copolymer
  • Adhesion to Steel: 2.5N/CM

Technical Parameters:

Property Value
Color White Color
Total Thickness 0.25mm±0.02
Abrasion resistance (Scrape) Class D 1000~4999
Resistance to Abrasion ≥750mm
Material Woven PET + Acrylates Copolymer
Adhesive Acrylates Copolymer
Elongation ≥10%
Width 9/19/25/32/38/50mm ±0.2
Temperature Range -40℃ (4h)~150℃ (3000h) 175℃ (240h)
Flame retardation Class B Self-extinguishing


Cloth Wire Harness Tape – Kablee T04

1. Wire Harnesses: Cloth tape is commonly used to wrap and secure wire harnesses in automotive, marine, and aircraft applications. It provides a secure and neat bundling solution while offering protection against abrasion and electrical interference.

2. Electrical Repairs: It can be used for repairing damaged wire insulation or covering exposed wires. The tape helps insulate and protect the repaired area, preventing electrical hazards.

3. General Purpose Applications: Cloth wire harness tape is also used in various non-electrical applications. Its flexibility and adhesive properties make it suitable for bundling and securing objects, temporary repairs, or as a general-purpose utility tape.




Support and Services:

Cloth Wire Harness Tape Technical Support and Services

We provide comprehensive technical support and service for our Cloth Wire Harness Tape, including:

  • Phone support and remote access
  • On-site troubleshooting and diagnosis
  • Software updates
  • Product demos
  • Training and tutorials
  • Customer service and technical support
  • Repair and replacement
