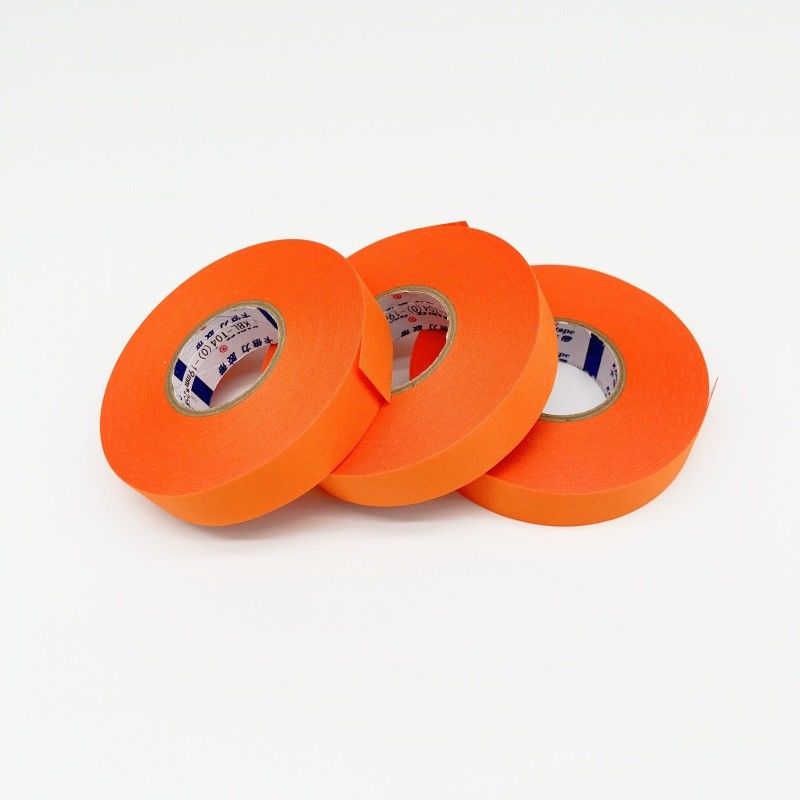

Acrylates Copolymer Adhesive Cloth Wire Harness Tape T04 Orange Color

Acrylates Copolymer Adhesive Cloth Wire Harness Tape T04 Orange Color

2.5N/CM Cloth Wire Harness Tape

Orange Color Cloth Wire Harness Tape

Orange Color Wire Harness Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T04(O)

Contact Us

Request A Quote
Product Details
Abrasion Resistance (Scrape):
Class D 1000~4999
Flame Retardation:
Class B Self-extinguishing
Elongation:
≥10%
Temperature Range:
-40℃ (4h)~150℃ (3000h) 175℃ (240h)
Color:
Orange Color
Resistance To Abrasion:
≥750mm
Total Thickness:
0.25mm±0.02
Product Name:
Cloth Wire Harness Tapes
Tensile Strength:
50N/cm
Adhesion To Steel:
2.5N/CM
Application:
Wire Harness Wrapping
Material:
Cloth
Length:
25m
Part Code:
T04
Size:
19mm*25m
Flammability:
Class B Self-extinguishing
Adhesive:
Acrylates Copolymer
Temperature Resistance:
Up To 150°C
Core Diameter:
38mm±1
Width:
19mm
Original From:
Guangzhou China
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description



Acrylates Copolymer Adhesive Cloth Wire Harness Tape T04 Orange Color

Product Description:

Cloth wire harness tape, also known as fabric tape or friction tape, is a type of adhesive tape specifically designed for wire harnesses and electrical applications. It is made from a woven cotton fabric material that provides flexibility, durability, and good insulation properties. Here are some key features and uses of cloth wire harness tape:



Features:

1. Fabric Material: Cloth wire harness tape is typically made from PET synthetic fibers. This fabric construction allows the tape to be flexible and conformable to irregular shapes, making it suitable for wrapping around wire harnesses.

2. Adhesive Backing: The tape is coated on one side with an adhesive material. The adhesive is usually a natural rubber-based compound, providing good adhesion to various surfaces and maintaining a secure hold.

3. High-Temperature Resistance: Cloth tape is known for its ability to withstand high temperatures. It can handle heat generated by electrical components and wiring without melting or degrading, making it suitable for automotive, aerospace, and industrial applications.

4. Insulation and Protection: Cloth wire harness tape offers electrical insulation and protection for wires and harnesses. It helps prevent contact between wires and reduces the risk of short circuits, abrasion, and damage from external elements such as moisture, dust, and vibrations



Technical Parameters:

Product Attributes Details
Total Thickness 0.25mm±0.02
Flame retardation Class B Self-extinguishing
Tensile Strength ≥20N/cm
Width 9/19/25/32/38/50mm ±0.2
Adhesive Acrylates Copolymer
Elongation ≥10%
Abrasion resistance (Scrape) Class D 1000~4999
Material Woven PET + Acrylates Copolymer
Resistance to Abrasion ≥750mm
Adhesion to Steel 2.5N/CM


Applications:

1. Wire Harnesses: Cloth tape is commonly used to wrap and secure wire harnesses in automotive, marine, and aircraft applications. It provides a secure and neat bundling solution while offering protection against abrasion and electrical interference.

2. Electrical Repairs: It can be used for repairing damaged wire insulation or covering exposed wires. The tape helps insulate and protect the repaired area, preventing electrical hazards.

3. General Purpose Applications: Cloth wire harness tape is also used in various non-electrical applications. Its flexibility and adhesive properties make it suitable for bundling and securing objects, temporary repairs, or as a general-purpose utility tape.



Packing and Shipping:

Cloth Wire Harness Tape Packaging and Shipping:

The Cloth Wire Harness Tape should be packed in a sealed plastic container to prevent dust and debris from entering. It should then be placed in an appropriately-sized cardboard box for shipping. The box should be labeled with the product description and destination address. The box should also include a packing slip with the customer's name and address, the product weight, and the shipping cost.

The box should be sealed with packing tape and placed in a larger box with foam or bubble wrap for additional protection. The box should be labeled with "Fragile" and "Handle With Care" stickers. The box should then be sent to the customer via a reliable shipping service.
