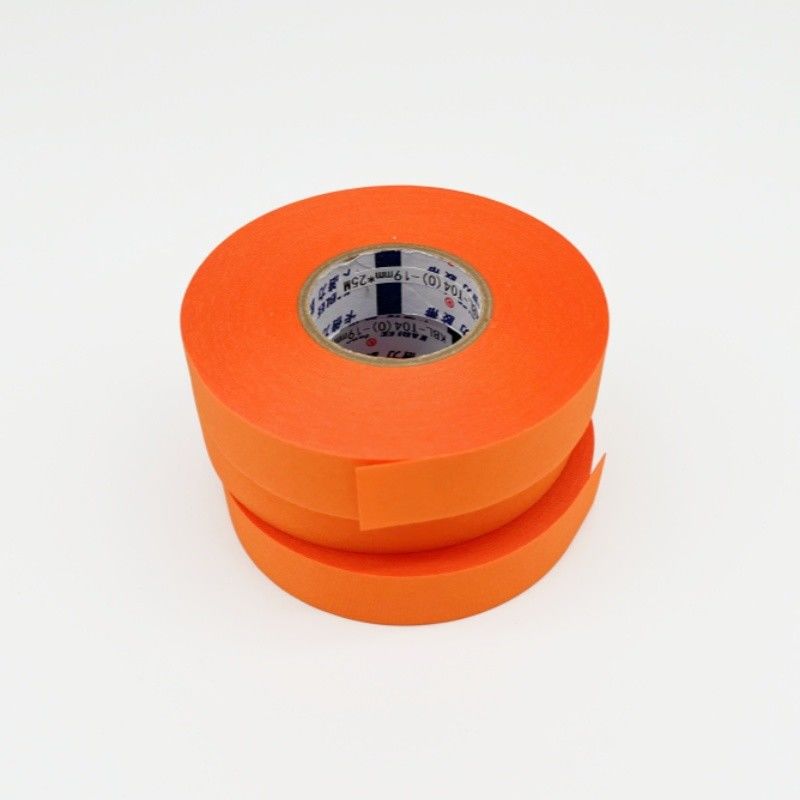

Automotive Cloth Wire Harness Tape T04 Orange Color High Abrasion Resistance

Automotive Cloth Wire Harness Tape T04 Orange Color High Abrasion Resistance

Abrasion Resistance Cloth Wire Harness Tape

Orange Color Cloth Wire Harness Tape

Orange Color Wire Harness Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T04(O)

Contact Us

Request A Quote
Product Details
Abrasion Resistance (Scrape):
Class D 1000~4999
Flame Retardation:
Class B Self-extinguishing
Elongation:
≥10%
Temperature Range:
-40℃ (4h)~150℃ (3000h) 175℃ (240h)
Color:
Orange Color
Resistance To Abrasion:
≥750mm
Total Thickness:
0.25mm±0.02
Product Name:
Cloth Wire Harness Tapes
Tensile Strength:
≥20N/cm
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description



Automotive Cloth Wire Harness Tape T04 Orange Color High Abrasion Resistance

Product Description:

Cloth Wire Harness Tape is a special type of tape that provides flame retardation, abrasion resistance, and superior mechanical properties. It is designed to protect cables, wires, and other sensitive components in electrical equipment and wiring systems. It is made of a woven cloth backing with a thermoset adhesive, and it exhibits excellent flame retardation, Class B Self-extinguishing, abrasion resistance (Scrape) Class D 1000~4999, total thickness of 0.25mm±0.02, resistance to abrasion ≥750mm, and elongation ≥10%. Cloth Wire Harness Tape is highly resistant to water, oil, and most solvents, making it ideal for use in a wide range of industrial, automotive, and other applications. It is durable and easy to apply, making it a reliable and cost-efficient solution for any wiring project.



Features:

  • Product Name: Cloth Wire Harness Tape
  • Adhesive: Acrylates Copolymer
  • Abrasion resistance (Scrape): Class D 1000~4999
  • Total Thickness: 0.25mm±0.02
  • Color: Orange Color
  • Tensile Strength: ≥20N/cm


Technical Parameters:

Product Attributes Details
Total Thickness 0.25mm±0.02
Flame retardation Class B Self-extinguishing
Tensile Strength ≥20N/cm
Width 9/19/25/32/38/50mm ±0.2
Adhesive Acrylates Copolymer
Elongation ≥10%
Abrasion resistance (Scrape) Class D 1000~4999
Material Woven PET + Acrylates Copolymer
Resistance to Abrasion ≥750mm
Adhesion to Steel 2.5N/CM


Applications:

Cloth Wire Harness Tape, manufactured by Kablee (Model Number T04) in Guangzhou China, is certified by RoHS/REACH/ELV/IATF16949:2016 and is available to order with a minimum of 1 carton. The price per carton ranges from 0.01-0.03 and will be delivered within 5-7 days of payment, accepted by T/T, Paypal. Supply of up to 5000 cartons per day is also available. The Cloth Wire Harness Tape is made from a woven PET material and Acrylates Copolymer, with a total thickness of 0.25mm±0.02 and is highly resistant to abrasion (≥750mm). It has a Class D abrasion resistance (Scrape) of 1000~4999.




Packing and Shipping:

Cloth Wire Harness Tape Packaging and Shipping:

The Cloth Wire Harness Tape should be packed in a sealed plastic container to prevent dust and debris from entering. It should then be placed in an appropriately-sized cardboard box for shipping. The box should be labeled with the product description and destination address. The box should also include a packing slip with the customer's name and address, the product weight, and the shipping cost.

The box should be sealed with packing tape and placed in a larger box with foam or bubble wrap for additional protection. The box should be labeled with "Fragile" and "Handle With Care" stickers. The box should then be sent to the customer via a reliable shipping service.

Automotive Cloth Wire Harness Tape T04 Orange Color High Abrasion Resistance 0Automotive Cloth Wire Harness Tape T04 Orange Color High Abrasion Resistance 1
