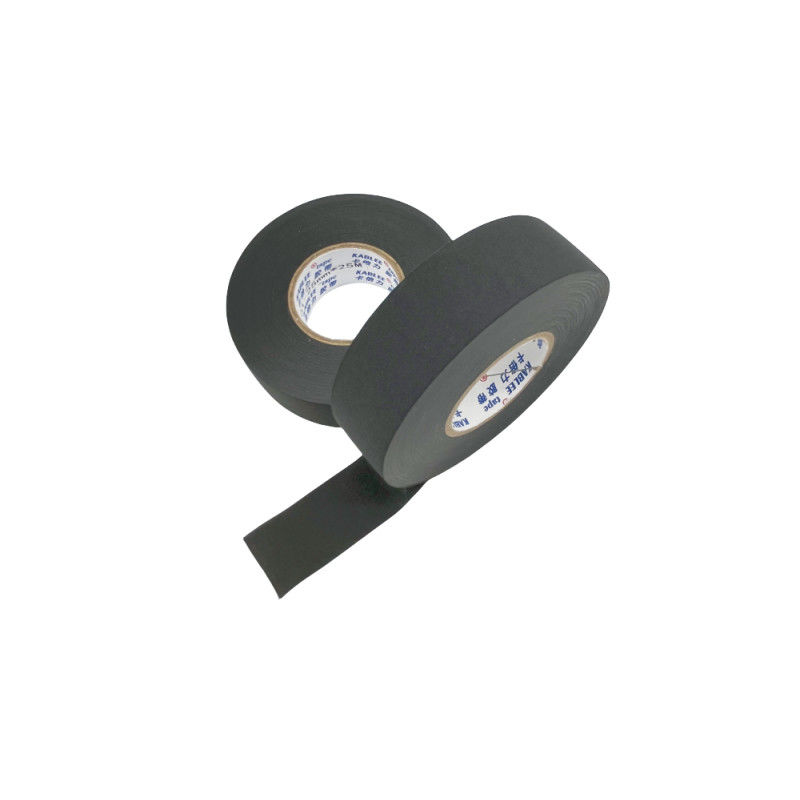

Noise Vibration Dampening Automotive Wire Harness Tape 0.2mm Thickness

Noise Vibration Dampening Automotive Wire Harness Tape 0.2mm Thickness

Noise Vibration Automotive Wire Harness Tape

Automotive Wire Harness Tape 0.2mm Thickness

Place of Origin:

Guangzhou China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Automotive Wire Harness Cloth Tapes
Polyester PET
Acrylates Copolymer
Original From:
Guangzhou China
Chemical Resistance:
Flame Retardancy:
Self Extinguish B
Temperature Resistance:
-40 To 105 Degree
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
500 cartons per day
Product Description

Noise Vibration Dampening Automotive Wire Harness Cloth Tapes

Product Description:


Automotive wire harness cloth tapes are specifically designed for use in the automotive industry to secure and protect wire harnesses in vehicles. These tapes have unique specifications and features to meet the demanding requirements of automotive applications. Here are some key specifications and characteristics of automotive wire harness cloth tapes:


1. Material: Automotive wire harness cloth tapes are typically made from high-quality cotton or polyester materials. These materials provide durability, flexibility, and resistance to abrasion.


2. Adhesive: The adhesive used in automotive wire harness cloth tapes is specially formulated to have excellent bonding strength with automotive wire insulation and harness components. It ensures secure adhesion even under the harsh conditions of the automotive environment.


3. Width and Length: Cloth tapes are available in different widths, typically ranging from ½ inch to several inches. The length can vary as well, ranging from a few yards to several hundred yards per roll.


4. Thickness: The thickness of cloth tapes can vary, typically ranging from 8 to 15mils  (0.008 to 0.015 inches). Thicker tapes offer increased durability and protection.


5. Tensile Strength: Given the demanding conditions in automotive applications, these tapes have high tensile strength to withstand the stress and tension experienced by wire harnesses during vehicle operation and vibrations.


6. Temperature Resistance: Automotive wire harness cloth tapes are designed to have excellent temperature resistance. They can withstand elevated temperatures commonly encountered in engine compartments or under the hood, ensuring reliable performance without adhesive failure or tape deterioration.


7. Noise and Vibration Dampening: These tapes often have noise and vibration dampening properties, helping to reduce vibrations and noise generated by wire harnesses. This feature enhances the overall performance and reduces the risk of wire chafing or rubbing against other components.


  • Product Name: Automotive Wire Harness Cloth Tape
  • Abrasion Resistant: Yes
  • Solvent Resistant: Yes
  • Adhesive: Acrylates Copolymer
  • Thickness: 0.2mm
  • Flame retardation: Class B Self-extinguishing

Technical Parameters:

Parameter Value
Adhesive Acrylates Copolymer
Material Polyester PET
Chemical Resistant Yes
180°Peel-off Strength ≥1.5N/cm
Flame retardation Class B Self-extinguishing
Thickness 0.2mm
Moisture Resistant Yes
Tensile Strength ≥20N/cm
Abrasion Resistant Yes
Flame Retardant Yes


Kablee Automotive Wire Harness Tape is an essential product for those in the automotive industry, providing an easy-to-use solution for wire harnesses. With its adhesive backing, this tape can be used to secure and protect wiring harnesses in cars, trucks, and other vehicles, making it ideal for automotive applications. It is designed with a highly durable acrylic adhesive that is solvent-resistant and temperature-resistant, so it can withstand extreme temperatures ranging from -40°F to 150°F without losing its strength and adhesion.
