25mm Width 0.2mm Thickness PET Cloth Tape For Car Wire Protection

25mm Width 0.2mm Thickness PET Cloth Tape For Car Wire Protection

0.2mm Thickness PET Cloth Tape

25mm Width PET Cloth Tape

PET Cloth Tape Car Wire Protection

Place of Origin:

Guangzhou China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Car Cloth Tapes
Polyester PET
Acrylates Copolymer
Original From:
Guangzhou China
Chemical Resistance:
Flame Retardancy:
Self Extinguish B
Temperature Resistance:
-40 To 105 Degree
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
500 cartons per day
Product Description

T01 25mm Width 0.2mm Thickness Cloth Tapes For Car Wire Protection

Cloth Tapes For Bundling Securing Wire Harness

Product Description:


Wire harness cloth tapes are adhesive tapes specifically designed for the purpose of bundling and securing wire harnesses in various applications. They are commonly used in industries such as automotive, aerospace, electronics, and electrical engineering. The primary function of wire harness cloth tapes is to provide protection, organization, and strain relief to the wires within a harness.


When it comes to cloth tapes, various specifications can vary depending on the specific product and manufacturer. However, here are some common specifications and characteristics associated with cloth tapes:


1. Material: Cloth tapes are typically made from cotton, polyester, or a combination of both. The choice of material affects the tape's overall strength, flexibility, and resistance to abrasion.


2. Adhesive: Cloth tapes have an adhesive backing that allows them to adhere to surfaces. The adhesive can be rubber-based, acrylic-based, or a combination of both. The adhesive properties determine the tape's bonding strength and its ability to stick to different surfaces.


3. Width and Length: Cloth tapes are available in different widths, typically ranging from ½ inch to several inches. The length can vary as well, ranging from a few yards to several hundred yards per roll.


4. Thickness: The thickness of cloth tapes can vary, typically ranging from 8 to 15mils  (0.008 to 0.015 inches). Thicker tapes offer increased durability and protection.


5. Tensile Strength: Tensile strength refers to the maximum amount of force or stress the tape can withstand before breaking. It is an important specification to consider, especially in applications where the tape will be subjected to tension or pulling forces.


6. Temperature Resistance: Cloth tapes may have different temperature resistance capabilities. Some tapes are designed to withstand high temperatures, while others have a lower tolerance. It is important to choose a tape that can withstand the temperatures expected in the application environment.


7. Flame Retardancy: In certain applications where fire safety is a concern, flame-retardant cloth tapes are available. These tapes are designed to resist burning or spreading flames, providing an added level of protection.


  • Product Name: Automotive Wire Harness Cloth Tape
  • Abrasion Resistant: Yes
  • Solvent Resistant: Yes
  • Adhesive: Acrylates Copolymer
  • Thickness: 0.2mm
  • Flame retardation: Class B Self-extinguishing

Technical Parameters:

Parameter Value
Adhesive Acrylates Copolymer
Material Polyester PET
Chemical Resistant Yes
180°Peel-off Strength ≥1.5N/cm
Flame retardation Class B Self-extinguishing
Thickness 0.2mm
Moisture Resistant Yes
Tensile Strength ≥20N/cm
Abrasion Resistant Yes
Flame Retardant Yes


Kablee Automotive Wire Harness Tape is an essential product for those in the automotive industry, providing an easy-to-use solution for wire harnesses. With its adhesive backing, this tape can be used to secure and protect wiring harnesses in cars, trucks, and other vehicles, making it ideal for automotive applications. It is designed with a highly durable acrylic adhesive that is solvent-resistant and temperature-resistant, so it can withstand extreme temperatures ranging from -40°F to 150°F without losing its strength and adhesion.

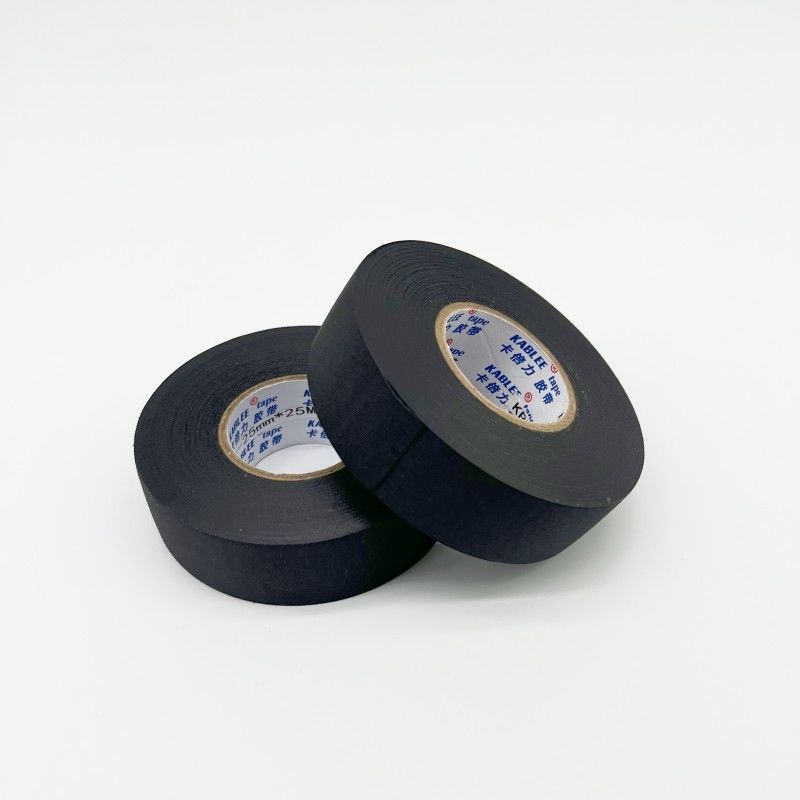

25mm Width 0.2mm Thickness  PET Cloth Tape For Car Wire Protection 025mm Width 0.2mm Thickness  PET Cloth Tape For Car Wire Protection 1
