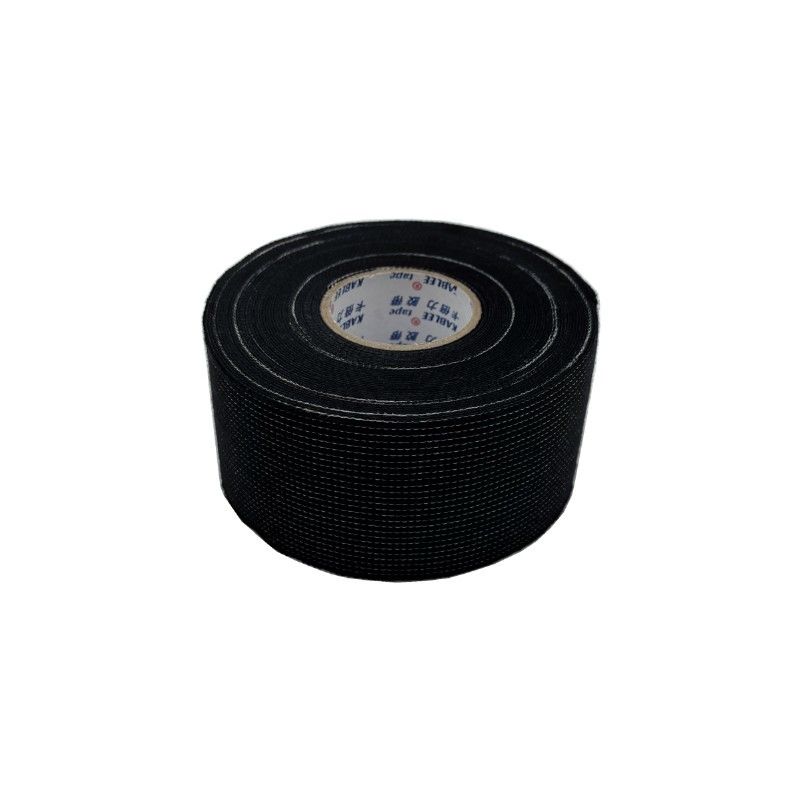

Flame Retardat 0.31mm Thickness Fleece Electrical Harness Tape Width Customized

Flame Retardat 0.31mm Thickness Fleece Electrical Harness Tape Width Customized

0.31mm Thickness Electrical Harness Tape

Fleece Electrical Harness Tape

Flame Retardat Electrical Harness Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T08

Contact Us

Request A Quote
Product Details
Resistance To UV:
Good
Thickness:
0.31mm
Resistance To Chemicals:
Good
Adhesion To Steel:
3N/cm
Product Name:
Fleece Wiring Tape
Elongation:
≥10%
Length:
10m Or 15m Or Customized
Tensile Strength:
20N/cm
Temperature Resistance:
-40℃ (4h)~105℃ (3000h)
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
500 cartons per day
Product Description

Thickness Fleece Material Electrical Harness Tape Width Customized

Product Description:

Electrical harness tape, also known as wire harness tape or electrical tape, is a type of adhesive tape specifically designed for wrapping and insulating electrical wires and cables. It is commonly used in automotive, aerospace, and electrical industries to secure and protect wire harnesses, as well as to provide electrical insulation.

Features:

  • Product Name: Fleece Wiring Tape
  • Resistance to Abrasion: Good
  • Tensile Strength: 20N/cm
  • Flame retardation: Class B Self-extinguishing
  • Length: 10m Or 15m
  • Thickness: 0.31mm


Technical Parameters:

Properties Details
Application Insulation Of Wiring Harness
Thickness 0.31mm
Adhesion to Steel 2.5N/cm
Width 9/19/25/32/38/50mm ±0.2
Resistance to Abrasion Good
Temperature Range -40℃ (4h)~105℃ (3000h) 125℃ (240h)
Tensile Strength 20N/cm
Flame Retardation Class B Self-extinguishing
Color Black
Length 10m Or 15m


Applications:

1. Insulation: Electrical harness tape is made from materials that provide insulation against electrical current. This helps prevent short circuits, electrical shocks, and other electrical hazards.

2. Adhesive properties: The tape has an adhesive backing that allows it to adhere tightly to the wires and cables, keeping them in place and protecting them from moisture, dirt, and other contaminants.

3. Flexibility: The tape is often flexible and can conform to the shape of the wires and cables, making it easier to wrap around them and create a secure, uniform covering.

4. Durability: Electrical harness tape is designed to withstand various environmental conditions, such as temperature changes, vibrations, and exposure to chemicals. It typically has good resistance to abrasion, moisture, and UV radiation.

5. Color coding: Some electrical harness tapes come in different colors, allowing for easy identification and organization of wires based on their functions or circuits. This can simplify troubleshooting and maintenance.

Customization:

The customization options for electrical harness tape can vary depending on the manufacturer and specific requirements.Width and Length: Electrical harness tape is available in various widths and lengths to accommodate different wire sizes and harness lengths. It can be customized to meet specific dimensional needs, ensuring optimal coverage and protection.

FAQ:

Q: What is Fleece Wiring Tape?

A: Fleece Wiring Tape is a type of electrical insulation tape manufactured by Kablee. It is made of polyester/polypropylene film and coated with a special hot melt adhesive. This product is RoHS/REACH/ELV/IATF16949:2016 certified, and is available in various forms such as rolls, strips, and pre-cut pieces.

Q: What is the model number?

A: The model number is T02.

Q: Where is Fleece Wiring Tape manufactured?

A: Fleece Wiring Tape is manufactured in Guangzhou, China.

Q: What is the minimum order quantity?

A: The minimum order quantity is 1 carton.
