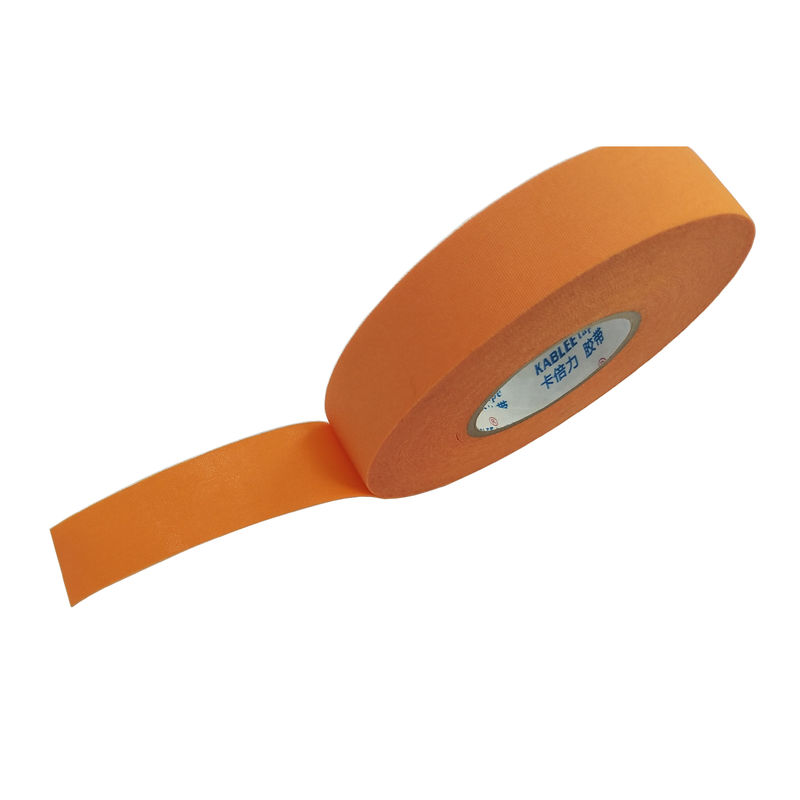

0.25mm Cloth Wiring Harness Tape , Acrylates Copolymer Auto Electrical Cloth Tape

0.25mm Cloth Wiring Harness Tape , Acrylates Copolymer Auto Electrical Cloth Tape

0.25mm Cloth Wiring Harness Tape

Auto Cloth Wiring Harness Tape

Acrylates Copolymer Auto Electrical Cloth Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T04

Contact Us

Request A Quote
Product Details
Temperature Range:
-40℃ (4h)~150℃ (3000h) 175℃ (240h)
Material:
Woven PET + Acrylates Copolymer
Flame Retardation:
Class B Self-extinguishing
Application:
Wire Harness Tape
Elongation:
≥10%
Color:
Orange Color
Tensile Strength:
≥20N/cm
Adhesion To Steel:
2.5N/CM
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description

0.25mm Acrylates Copolymer Cloth Wire Harness Tape for Electrical and Automotive Applications

Product Description:

Cloth Wire Harness Tape is an essential component for electrical wiring harnesses, providing flame retardation, adhesion to steel, and other properties that make it a popular choice among consumers. This tape is made of a woven PET material plus an acrylates copolymer, and it has a temperature range from -40℃ (4h) to 150℃ (3000h) and 175℃ (240h). It is Class B Self-extinguishing and has a width of 9/19/25/32/38/50mm ±0.2, with an adhesion to steel of 2.5N/CM. Cloth Wire Harness Tape is a reliable and durable solution for various applications, such as in automotive, aerospace, and marine industries.



Features:

  • Product Name: Cloth Wire Harness Tape
  • Tensile Strength: ≥20N/cm
  • Elongation: ≥10%
  • Application: Wire Harness Tape
  • Temperature Range: -40℃ (4h)~150℃ (3000h) 175℃ (240h)
  • Abrasion resistance (Scrape): Class D 1000~4999


Technical Parameters:

Property Value
Elongation ≥10%
Color Orange Color
Tensile Strength ≥20N/cm
Adhesive Acrylates Copolymer
Flame retardation Class B Self-extinguishing
Temperature Range -40℃ (4h)~150℃ (3000h) 175℃ (240h)
Total Thickness 0.25mm±0.02
Material Woven PET + Acrylates Copolymer
Width 9/19/25/32/38/50mm ±0.2
Abrasion resistance (Scrape) Class D 1000~4999


Applications:

Cloth Wire Harness Tape is a high-quality product with the brand name Kablee and model number T04 which is manufactured in Guangzhou China. It has passed the strict certifications of RoHS/REACH/ELV/IATF16949:2016. The minimum order quantity is 1 carton and the price range is 0.01-0.03. The packing details are carton box and the delivery time is within 5-7days. The payment terms are T/T and Paypal and the supply ability is 5000 cartons per day. The material is Woven PET + Acrylates Copolymer and it has a strong resistance to abrasion of ≥750mm. The adhesive of the tape is Acrylates Copolymer and it has an excellent adhesion to steel of 2.5N/CM. The elongation of the tape is also very good, ≥10%.



Customization:

Cloth Wire Harness Tape
  • Brand Name: Kablee
  • Model Number: T04
  • Place of Origin: Guangzhou China
  • Certification: RoHS/REACH/ELV/IATF16949:2016
  • Minimum Order Quantity: 1 carton
  • Price: 0.01-0.03
  • Packaging Details: Carton Box
  • Delivery Time: within 5-7days
  • Payment Terms: T/T, Paypal
  • Supply Ability: 5000 cartons per day
  • Elongation: ≥10%
  • Abrasion resistance (Scrape): Class D 1000~4999
  • Color: Black Color
  • Application: Wire Harness Tape
  • Material: Woven PET + Acrylates Copolymer


Support and Services:

We provide technical support and service for Cloth Wire Harness Tape. Our support team is available 24/7 to answer your questions and provide assistance. We can help you with product selection, installation, troubleshooting, and product warranty. We also offer tips and advice to help you get the most out of your Cloth Wire Harness Tape.



Packing and Shipping:

Cloth Wire Harness Tape packaging and shipping:

The Cloth Wire Harness Tape is packaged in recloseable bags and shipped in sturdy cardboard boxes to ensure safe delivery. The boxes are lined with protective foam and sealed with tape to prevent any damage to the product.

The boxes are labeled with a unique tracking number and shipped via a reliable courier service.
