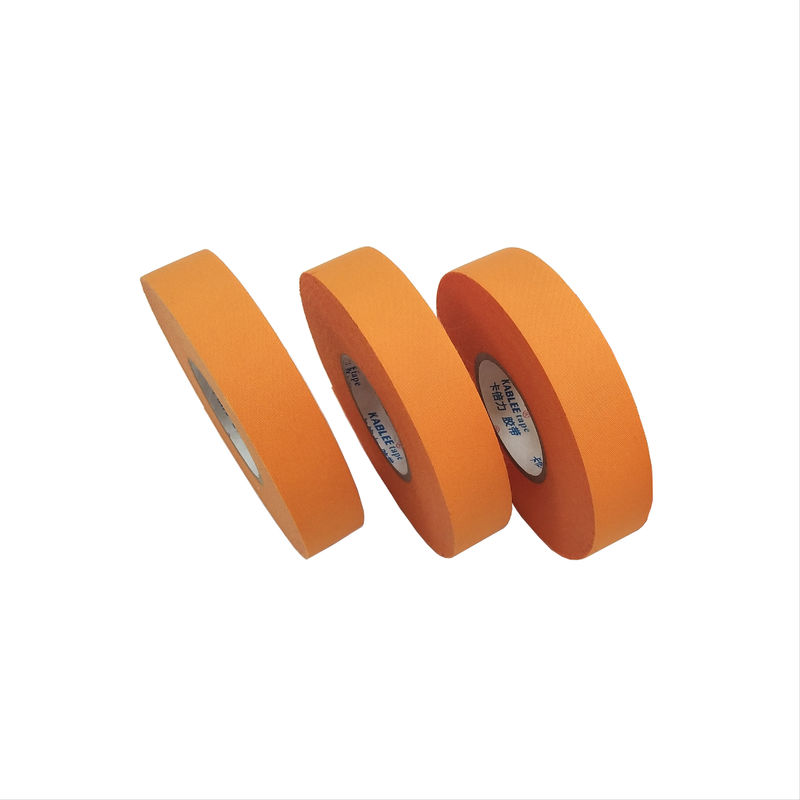

Electrical Cloth Insulation Tape Abrasion Resistant Woven PET Material

Electrical Cloth Insulation Tape Abrasion Resistant Woven PET Material

Electrical Cloth Insulation Tape

Cloth Insulation Tape Abrasion Resistant

Woven PET insulation cloth tape

Place of Origin:

Guangzhou China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Tensile Strength:
Adhesion To Steel:
Total Thickness:
Woven PET + Acrylates Copolymer
Resistance To Abrasion:
Acrylates Copolymer
Abrasion Resistance (Scrape):
Class D 1000~4999
9/19/25/32/38/50mm ±0.2
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description


High Tensile Strength Cloth Wire Harness Abrasion-Resistant Tape≥20N/cm ≥750mm

Product Description:

Cloth Wire Harness Tape is a kind of electrical insulation tape made of cloth material with good insulation, flame retardation and adhesion. It has good performance on elongation, tensile strength, width, total thickness and flame retardation. Specifically, it has an elongation of more than 10%, a tensile strength of more than 20N/cm, a width of 9/19/25/32/38/50mm ±0.2 , a total thickness of 0.25mm±0.02 and a flame retardation of Class B Self-extinguishing.

Cloth Wire Harness Tape is widely used in the electrical and electronic industry as an important part of the wire harness for protection and insulation. It is also used to protect the wire harness from vibration, abrasion and external impacts. With its superior performance, it is well received by the industry and customers.

Therefore, Cloth Wire Harness Tape is a perfect choice for customers who need a reliable and long-lasting insulation material for their wire harnesses, and it will always provide the best protection and insulation for the wire harnesses.



  • Product Name: Cloth Wire Harness Tape
  • Total Thickness: 0.25mm±0.02
  • Adhesion to Steel: 2.5N/CM
  • Abrasion resistance (Scrape): Class D 1000~4999
  • Width: 9/19/25/32/38/50mm ±0.2
  • Temperature Range: -40℃ (4h)~150℃ (3000h) 175℃ (240h)

Technical Parameters:

Parameter Value
Adhesive Acrylates Copolymer
Adhesion to Steel 2.5N/CM
Application Wire Harness Tape
Temperature Range -40℃ (4h)~150℃ (3000h) 175℃ (240h)
Tensile Strength ≥20N/cm
Color Black Color
Abrasion resistance (Scrape) Class D 1000~4999
Flame retardation Class B Self-extinguishing
Material Woven PET + Acrylates Copolymer
Total Thickness 0.25mm±0.02


Cloth Wire Harness Tape

Kablee's Cloth Wire Harness Tape is a perfect choice for a variety of industrial applications. With a model number of T04, this product is made in Guangzhou China and certified by RoHS/REACH/ELV/IATF16949:2016. The minimum order quantity is 1 carton, and the price ranges from 0.01 to 0.03. Packaged in a carton box and delivered within 5-7 days, this product can be paid for by T/T, Paypal. We can supply up to 5000 cartons per day. The adhesive is Acrylates Copolymer, the color is black, the adhesion to steel is 2.5 N/CM, the material is woven PET + Acrylates Copolymer, and the total thickness is 0.25 mm ± 0.02.



Cloth Wire Harness Tape

Brand Name: Kablee
Model Number: T04
Place of Origin: Guangzhou, China
Certification: RoHS/REACH/ELV/IATF16949:2016
Minimum Order Quantity: 1 carton
Price: 0.01-0.03
Packaging Details: Carton Box
Delivery Time: within 5-7days
Payment Terms: T/T, Paypal
Supply Ability: 5000 cartons per day
Adhesion to Steel: 2.5N/CM
Flame retardation: Class B Self-extinguishing
Tensile Strength: ≥20N/cm
Width: 9/19/25/32/38/50mm ±0.2
Abrasion resistance (Scrape): Class D 1000~4999

Kablee Cloth Wire Harness Tape is a reliable and versatile product designed for protecting wiring, harnesses, and cables. It is constructed with a flame-retardant cloth backing and a rubber-based adhesive that offers excellent adhesion to steel and other surfaces. It is UV and abrasion resistant and features a high tensile strength and flame retardation rating. With a minimum order quantity of one carton, Kablee Cloth Wire Harness Tape is available in 9/19/25/32/38/50mm widths and is priced competitively between 0.01 and 0.03. With a supply ability of 5000 cartons per day, Kablee offers fast delivery times of within 5-7 days, and accepts payment via T/T and Paypal.


Support and Services:

Technical Support and Service for Cloth Wire Harness Tape

We provide full technical support and service for Cloth Wire Harness Tape. Our experienced and knowledgeable customer service representatives are available to answer any questions or concerns you may have about the product. We will help you select the right product for the job and provide installation instructions, product specifications, and troubleshooting tips.

We also provide warranty and return policies for all of our products. If you have any issues with your Cloth Wire Harness Tape, we will work with you to find a solution that meets your needs. We value customer satisfaction and strive to provide excellent customer service.


Packing and Shipping:

Cloth Wire Harness Tape Packaging and Shipping

Cloth Wire Harness Tape should be packaged in a sturdy cardboard box or container with sufficient cushioning material to protect the product from any shock, moisture, and dirt. The box or container should be sealed and labeled with the product name, manufacturer, and date of manufacture.

Shipping should be done with a reliable carrier that provides tracking information. Properly package the product to prevent any damage during transit. Make sure to include all the necessary shipping documents with the package, such as a packing list, invoice, and any other relevant documents.
