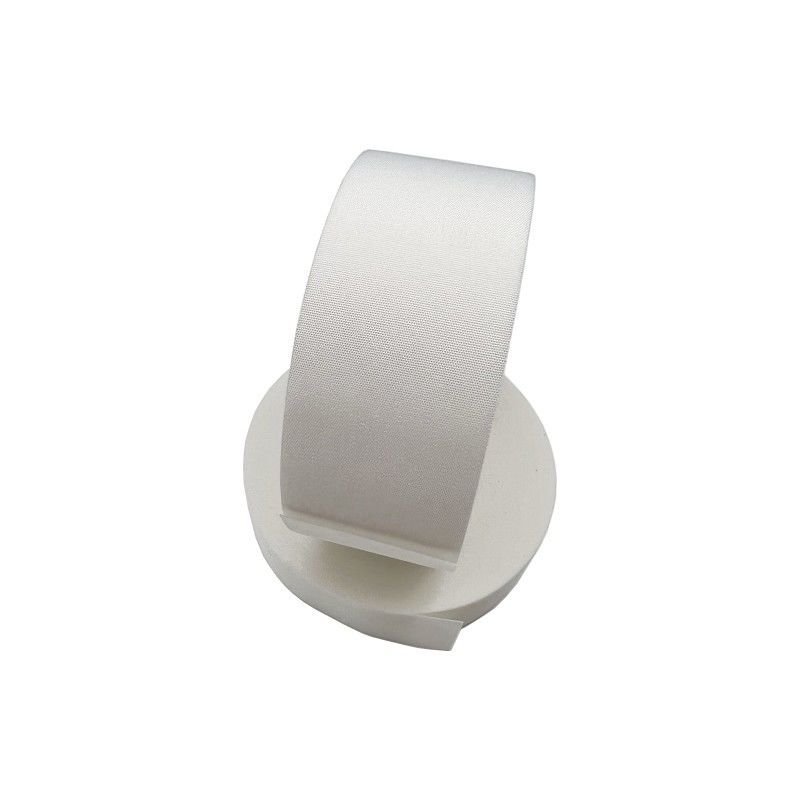

0.25mm White Cloth Tape For Electrical Industrial Flame Retardant

0.25mm White Cloth Tape For Electrical Industrial Flame Retardant

White Cloth Tape For Electrical

0.25mm Cloth Tape For Electrical

Flame Retardant Electrical Cloth Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T04

Contact Us

Request A Quote
Product Details
Abrasion Resistance (Scrape):
Class D 1000~4999
Temperature Range:
-40℃ (4h)~150℃ (3000h) 175℃ (240h)
Resistance To Abrasion:
≥750mm
Total Thickness:
0.25mm±0.02
Application:
Wire Harness Tape
Adhesive:
Acrylates Copolymer
Adhesion To Steel:
2.5N/CM
Elongation:
≥10%
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description

0.25mm White Cloth Wire Harness Tape for Professional Industrial Use

Product Description:

Cloth Wire Harness Tape is designed to provide an efficient and reliable solution for heat protection and insulation of wire harnesses. It is made of woven PET and Acrylates Copolymer, which is resistant to abrasion and has superior heat-resistant performance, with a temperature range of -40℃ (4h)~150℃ (3000h) and 175℃ (240h). The total thickness of Cloth Wire Harness Tape is 0.25mm±0.02, and it is available in widths of 9/19/25/32/38/50mm ±0.2.

Cloth Wire Harness Tape has excellent abrasion resistance, being able to withstand more than 750mm of wear and tear. The tape is also resistant to solvents, chemicals, and oil. It is easy to install and remove, making it an ideal choice for a variety of applications.

Cloth Wire Harness Tape is an effective solution for protecting and insulating wire harnesses, offering superior performance in a variety of applications. With its wide range of widths, temperature range, and abrasion resistance, it is the perfect choice for any wire harness insulation needs.



Features:

  • Product Name: Cloth Wire Harness Tape
  • Tensile Strength: ≥20N/cm
  • Application: Wire Harness Tape
  • Flame retardation: Class B Self-extinguishing
  • Material: Woven PET + Acrylates Copolymer
  • Adhesion to Steel: 2.5N/CM


Technical Parameters:

Property Value
Elongation ≥10%
Width 9/19/25/32/38/50mm ±0.2
Material Woven PET + Acrylates Copolymer
Adhesion to Steel 2.5N/CM
Application Wire Harness Tape
Adhesive Acrylates Copolymer
Resistance to Abrasion ≥750mm
Abrasion resistance (Scrape) Class D 1000~4999
Total Thickness 0.25mm±0.02
Tensile Strength ≥20N/cm


Applications:

Kablee's Cloth Wire Harness Tape is a high-performance tape designed to facilitate the bundling, protection, and insulation of wires, cables, and other electrical harnesses. The tape is made of woven PET and Acrylates Copolymer materials that combine flexibility and strength to provide superior protection. It has a width of 9/19/25/32/38/50mm ±0.2 and features excellent abrasion resistance (Scrape) of Class D 1000~4999, and a resistance to abrasion of 750mm. Its minimum order quantity is 1 carton, with the price ranging from 0.01-0.03. Packaging is available in carton boxes, and delivery time is within 5-7 days. Payment options include T/T and Paypal, and supply ability is 5000 cartons per day. The product is certified by RoHS/REACH/ELV/IATF16949:2016, guaranteeing its quality and safety. Kablee's Cloth Wire Harness Tape can be used in a variety of applications, providing a reliable solution for electrical wiring harnesses.



Customization:

Cloth Wire Harness Tape
Brand Name: Kablee
Model Number: T04
Place of Origin: Guangzhou China
Certification: RoHS/REACH/ELV/IATF16949:2016
Minimum Order Quantity: 1 carton
Price: 0.01-0.03
Packaging Details: Carton Box
Delivery Time: within 5-7days
Payment Terms: T/T, Paypal
Supply Ability: 5000 cartons per day
Abrasion resistance (Scrape): Class D 1000~4999
Total Thickness: 0.25mm±0.02
Resistance to Abrasion: ≥750mm
Width: 9/19/25/32/38/50mm ±0.2
Flame retardation: Class B Self-extinguishing



Support and Services:

Cloth Wire Harness Tape Technical Support and Service:

  • Assistance in product selection and application
  • Technical advice and customer service
  • Installation instructions and guidelines
  • On-site demonstrations
  • Troubleshooting and problem solving
  • Replacement parts and repairs


Packing and Shipping:

Packaging and Shipping: Cloth Wire Harness Tape

Cloth wire harness tape should be packaged carefully to ensure its quality and integrity. The process should include the following steps:

  • Securely wrap the tape in a durable material such as bubble wrap or packing paper.
  • Enclose the material in a sturdy box with cushioning materials such as foam or air bags.
  • Label the package clearly with the contents and destination of the shipment.
  • Include a packing slip or a copy of the invoice with the shipment.

The package should then be shipped via a reputable carrier. Ensure that the recipient’s address is correct on the package and that the package is insured for the full value of the contents.
