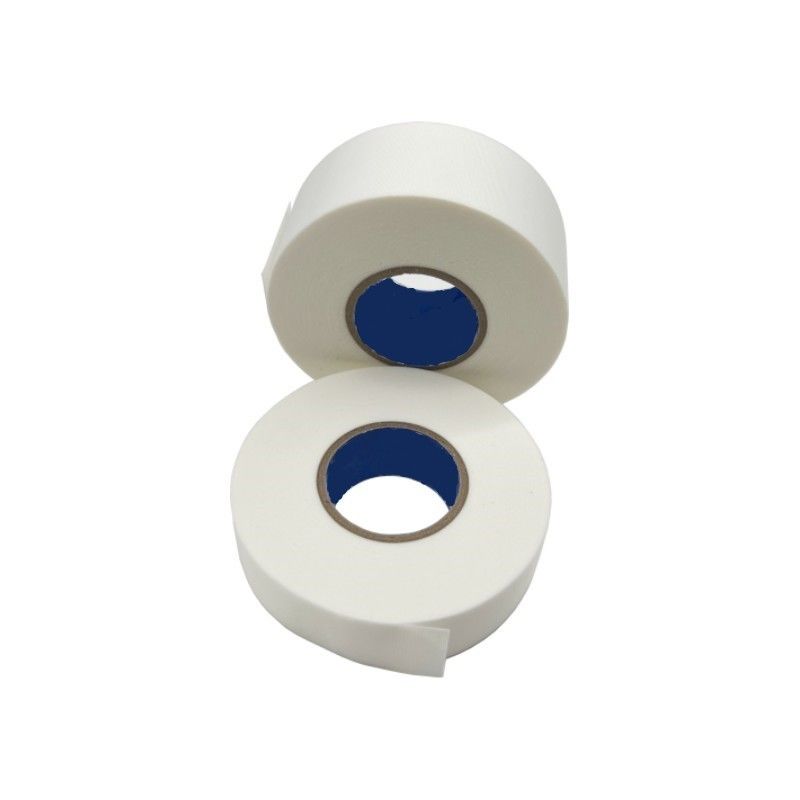

9mm 19mm Width Cloth Wiring Harness Tape Waterproof Flame Retardant

9mm 19mm Width Cloth Wiring Harness Tape Waterproof Flame Retardant

19mm Cloth Wiring Harness Tape

Cloth Wiring Harness Tape Waterproof

Flame Retardant Wiring Harness Cloth Tape

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T04

Contact Us

Request A Quote
Product Details
Flame Retardation:
Class B Self-extinguishing
Elongation:
≥10%
Width:
9/19/25/32/38/50mm ±0.2
Abrasion Resistance (Scrape):
Class D 1000~4999
Material:
Woven PET + Acrylates Copolymer
Adhesive:
Acrylates Copolymer
Resistance To Abrasion:
≥750mm
Total Thickness:
0.25mm±0.02
Payment & Shipping Terms
Minimum Order Quantity
1 carton
Price
0.01-0.03
Packaging Details
Carton Box
Delivery Time
within 5-7days
Payment Terms
T/T, Paypal
Supply Ability
5000 cartons per day
Product Description

9/19/25/32/38/50mm Cloth Tape For Wire Harness Adhesion To Steel 2.5N/CM

Product Description:

Cloth Wire Harness Tape is a high-grade adhesive, designed to provide a reliable and efficient insulation and protection for electrical wires and cables. It is made of high-quality cloth material that is waterproof, flame retardant, and fulfills all related safety standards. It has a strong adhesion to steel with an adhesive strength of 2.5N/CM, and is highly resistant to abrasion with a scrape class of 1000-4999. It has an elongation of ≥10%, and is available in widths of 9/19/25/32/38/50mm ±0.2 to meet your needs.



Features:

  • Product Name: Cloth Wire Harness Tape
  • Resistance to Abrasion: ≥750mm
  • Tensile Strength: ≥20N/cm
  • Material: Woven PET + Acrylates Copolymer
  • Adhesive: Acrylates Copolymer
  • Adhesion to Steel: 2.5N/CM


Technical Parameters:

Property Value
Color White Color
Total Thickness 0.25mm±0.02
Abrasion resistance (Scrape) Class D 1000~4999
Resistance to Abrasion ≥750mm
Material Woven PET + Acrylates Copolymer
Adhesive Acrylates Copolymer
Elongation ≥10%
Width 9/19/25/32/38/50mm ±0.2
Temperature Range -40℃ (4h)~150℃ (3000h) 175℃ (240h)
Flame retardation Class B Self-extinguishing


Applications:

Cloth Wire Harness Tape – Kablee T04

Kablee T04 Cloth Wire Harness Tape is a type of adhesive tape specifically designed for wire harnessing applications. Designed and manufactured in Guangzhou, China, Kablee T04 Cloth Wire Harness Tape is compliant with various quality standards such as RoHS/REACH/ELV/IATF16949:2016. Customers can purchase the Kablee T04 Cloth Wire Harness Tape in minimum quantity of 1 carton and prices range from 0.01-0.03. The tape is supplied in a carton box and delivery time is within 5-7 days. Payment terms accept T/T and Paypal. The company is capable of supplying up to 5000 cartons per day. The total thickness of the tape is 0.25mm±0.02, and it has a wire harness tape application. The tensile strength of the tape is ≥20N/cm, and adhesion to steel is 2.5N/CM. The temperature range of Kablee T04 Cloth Wire Harness Tape is -40℃ (4h)~150℃ (3000h) and 175℃ (240h).



Customization:

Kablee offers a wide range of Cloth Wire Harness Tape with the following features:

  • Brand Name: Kablee
  • Model Number: T04
  • Place of Origin: Guangzhou China
  • Certification: RoHS/REACH/ELV/IATF16949:2016
  • Minimum Order Quantity: 1 carton
  • Price: 0.01-0.03
  • Packaging Details: Carton Box
  • Delivery Time: within 5-7days
  • Payment Terms: T/T, Paypal
  • Supply Ability: 5000 cartons per day
  • Flame retardation: Class B Self-extinguishing
  • Adhesion to Steel: 2.5N/CM
  • Resistance to Abrasion: ≥750mm
  • Adhesive: Acrylates Copolymer
  • Total Thickness: 0.25mm±0.02


Support and Services:

Cloth Wire Harness Tape Technical Support and Services

We provide comprehensive technical support and service for our Cloth Wire Harness Tape, including:

  • Phone support and remote access
  • On-site troubleshooting and diagnosis
  • Software updates
  • Product demos
  • Training and tutorials
  • Customer service and technical support
  • Repair and replacement
