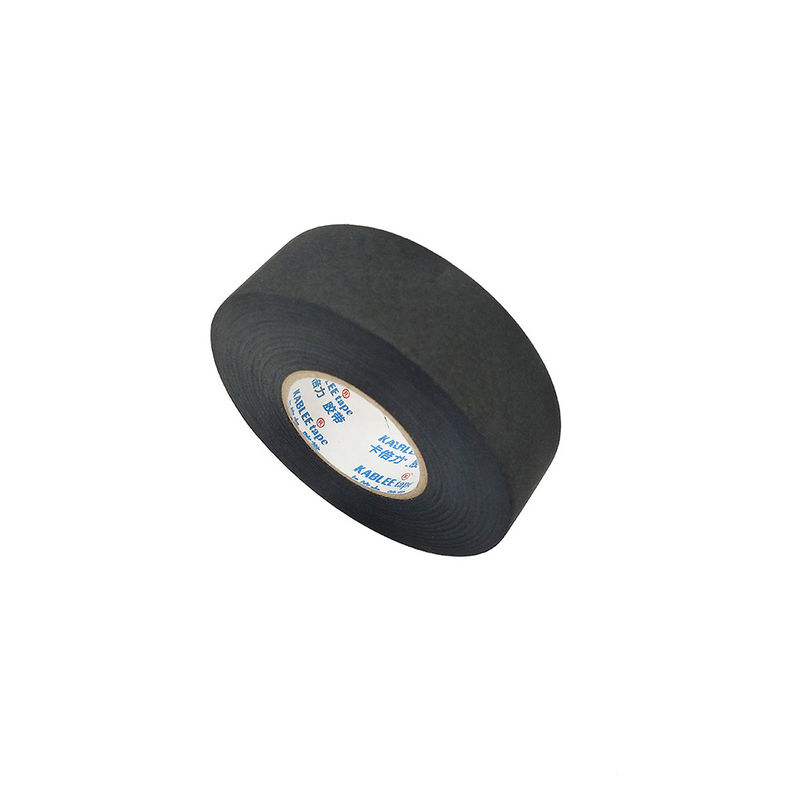

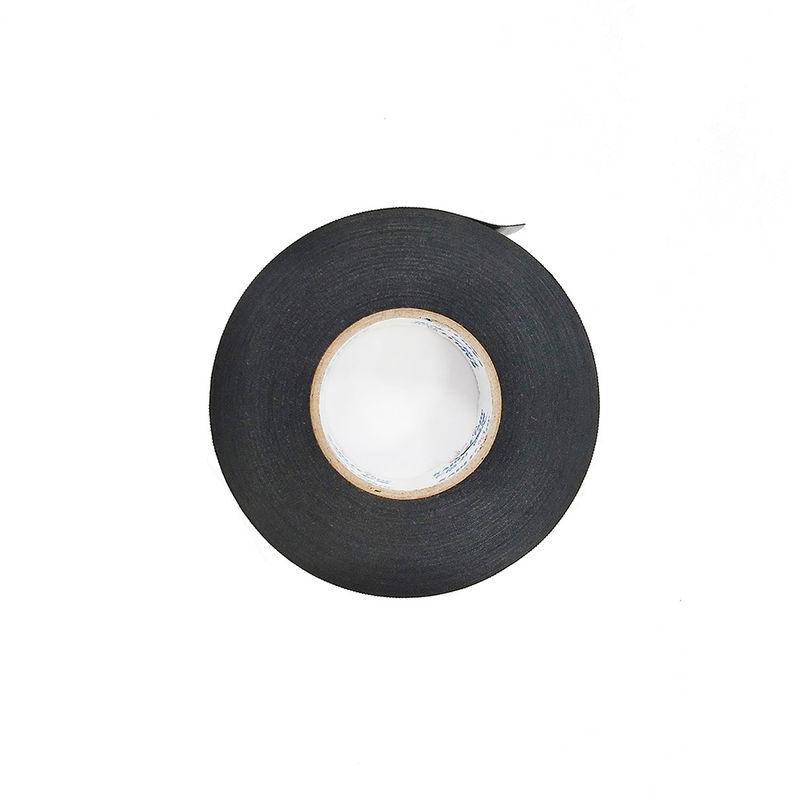

Electrical Cloth Wiring Loom Tape With Acrylates Copolymer Adhesive 0.20mm Thickness

Electrical Cloth Wiring Loom Tape With Acrylates Copolymer Adhesive 0.20mm Thickness

Electrical Cloth Wiring Loom Tape

Acrylates Copolymer Cloth Wiring Loom Tape

wiring loom cloth tape 0.20mm

Place of Origin:

Guangzhou China

Brand Name:

Kablee

Certification:

RoHS/REACH/ELV/IATF16949:2016

Model Number:

T01

Contact Us

Request A Quote
Product Details
Width:
9/19/25/32/38/50mm ±0.2
Flame Retardation:
Class B Self-extinguishing
Abrasion Resistance (Scrape):
Class D 1000~4999
Elongation:
≥10%
Total Thickness:
0.20mm±0.02
Application:
Wire Harness Tape
Color:
Black Color
Tensile Strength:
≥20N/cm
Payment & Shipping Terms
Minimum Order Quantity
1 carton box
Price
0.001-0.02
Packaging Details
carton boxes
Supply Ability
100 carton/days
Product Description

Class D 1000~4999 Abrasion Resistance Electrical Harness Tape With Acrylates Copolymer Adhesive And 0.20mm±0.02 Total Th

Product Description:

Cloth Wire Harness Tape is widely used in automotive industry and electrical wiring for its strong adhesive, abrasion resistance and excellent electrical insulation. This premium automotive cloth electrical tape features strong adhesive capacity, with an adhesion to steel of 2.5N/CM, and is resistant to scrapes and abrasions of Class D 1000~4999. It is made of acrylates copolymer, with a thickness of 0.13mm and a width of 9/19/25/32/38/50mm ±0.2. The black color of the tape allows it to blend seamlessly with the vehicles' interior. This wire harness automotive cloth tape is perfect for harness securement, wire insulation and bundling, and provides superior protection in harsh environments.



Features:

  • Product Name: Cloth Wire Harness Tape
  • Adhesion to Steel: 2.5N/CM
  • Adhesive: Acrylates Copolymer
  • Total Thickness: 0.20mm±0.02
  • Material: Woven PET + Acrylates Copolymer
  • Abrasion resistance (Scrape): Class D 1000~4999
  • Ideal for Automotive Harness Tape, Wire Wrap Tape and Electrical Harness Tape


Technical Parameters:

Property Value
Tensile Strength ≥20N/cm
Material Woven PET + Acrylates Copolymer
Abrasion Resistance (Scrape) Class D 1000~4999
Adhesive Acrylates Copolymer
Resistance to Abrasion ≥750mm
Width 9/19/25/32/38/50mm ±0.2
Flame Retardation Class B Self-extinguishing
Elongation ≥10%
Adhesion to Steel 2.5N/CM
Temperature Range -40℃ (4h)~125℃ (3000h), 150℃ (240h)


Applications:

Kablee's T01 Cloth Wire Harness Tape is the perfect choice for any automotive electrical wiring application. It is made of a high quality, black colored, abrasion resistant, Acrylates Copolymer adhesive that is designed to provide excellent adhesion and insulation to wire harnesses, cables, and connectors. This tape is available in a variety of widths, from 9/19/25/32/38/50mm ±0.2, and provides a Class D 1000~4999 level of abrasion resistance. This tape is perfect for use in automotive wire harnessing applications, as it provides superior insulation and adhesion due to its abrasion resistance and adhesive power. Furthermore, the Kablee T01 Cloth Wire Harness Tape is the perfect choice for any automotive cloth electrical tape, wire harness automotive cloth tape, or cloth harness tape application.



Customization:

Customized Service for Kablee's Cloth Wire Harness Tape (Model Number: T01)

This cloth wire harness tape is manufactured by Kablee and is designed for high heat resistance and abrasion resistance. It has the following features:

  • Brand Name: Kablee
  • Model Number: T01
  • Place of Origin: Guangzhou China
  • Resistance to Abrasion: ≥750mm
  • Flame Retardation: Class B Self-extinguishing
  • Temperature Range: -40℃ (4h)~125℃ (3000h) 150℃ (240h)
  • Width: 9/19/25/32/38/50mm ±0.2
  • Adhesive: Acrylates Copolymer

This cloth wire harness tape is ideal for applications requiring high heat harness tape, cloth harness tape, or cloth loom tape.



Support and Services:

We offer technical support and services for Cloth Wire Harness Tape. Our team of experienced technicians can provide professional assistance for all your inquiries and needs. We are dedicated to helping you find the best solution for your project.

Our technical support includes product advice, installation and setup guidance, troubleshooting techniques, and more. We are also available to provide on-site technical assistance, if needed.

We provide ongoing service and maintenance for Cloth Wire Harness Tape, so you can be sure your product is working at its best. We offer free diagnostic and repair services, as well as parts replacements or upgrades.

Our friendly and knowledgeable staff can provide you with all the information you need to make the right decision for your project. We are committed to delivering the highest quality support and services for Cloth Wire Harness Tape.



Packing and Shipping:

The product, Cloth Wire Harness Tape, is packaged in a cardboard box that is clearly labeled with the product name and other relevant information. The box is lined with foam to protect the product from damage during shipping. The box is then sealed and placed in a shipping container for transportation. The shipping container is then secured with straps to ensure it will not move during transit.
